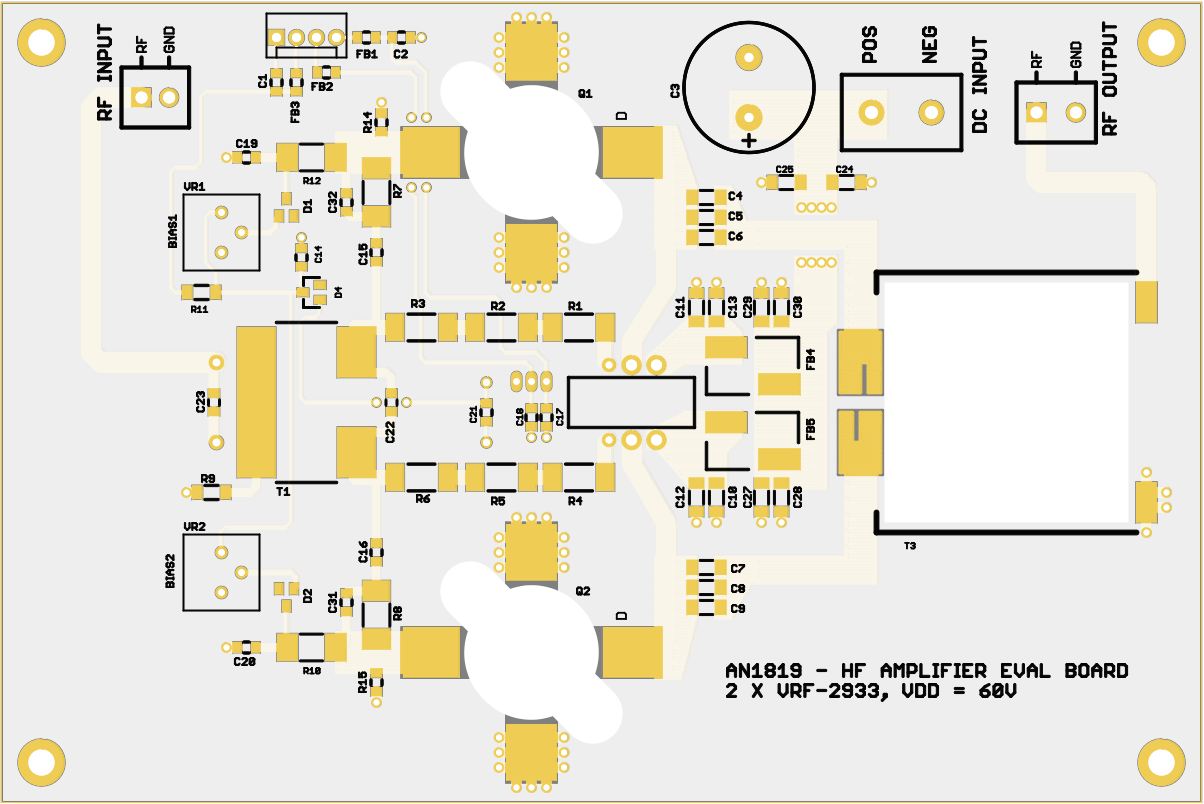

Microsemi AN1819 500W Amp Eval Board

This amplifier is a 500W or 700W design based on the Microsemi VRF2933 or VRF2944 MOSFET. We have an eval board that supports both devices.

The board measures 10 X 15cm (4" X 6") and it is 1.6mm (0.063") thick with 2 oz copper and emersion gold plating for good heat dissipation and maximum conductivity.

Run it with a pair of VRF2933's at 60V for 5W in, 500W output or use a pair of VRF2944's at 65V for 10W in, 700W output.

More technical details can be found on our tech site.
